ALTOS-TRACK
All-in-One Intelligent Tracking Sensor
Built on the proven ALTOS solid-state LiDAR platform, ALTOS-TRACK represents the next evolution of LiDAR by combining accurate 3D sensing with embedded perception. Delivering tracked objects, detection events, and real-time alerts directly from the sensor, ALTOS-TRACK enables customers to move directly from 3D sensing to application-specific solutions.
160,000 hours MTBF
Why ALTOS-TRACK
-
Embedded Perception Object Detection and Tracking Built In
ALTOS-TRACK transforms raw 3D point-cloud data into tracked objects, events, and triggers directly on the sensor. -
Simplified System Architecture One Sensor. Less Complexity.
Integrating sensing and perception into a single device reduces hardware, power, networking, integration effort, and long-term maintenance. -
Faster Application Development Focus On Solving Your Problem
With object detection, tracking, events, and triggers already available, developers can focus on building application-specific solutions instead of integrating perception components.
Local And Remote Control

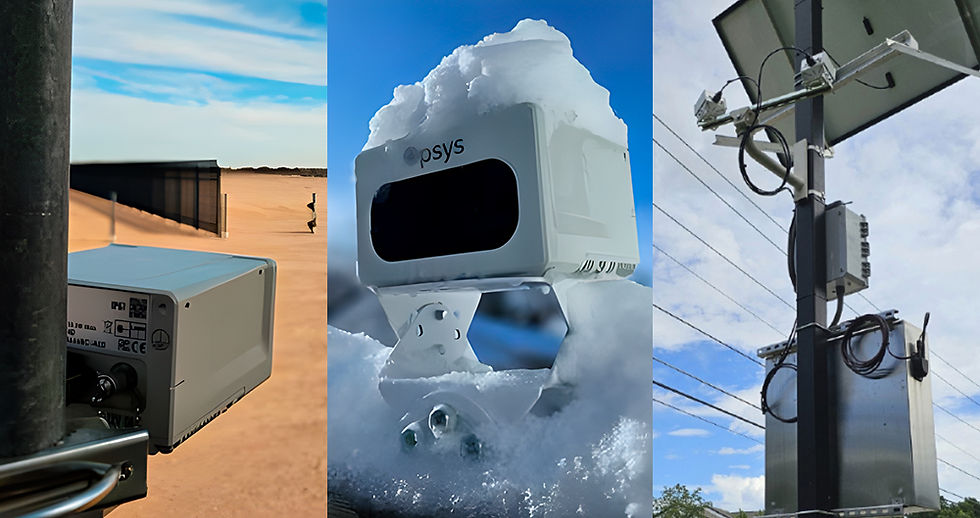

Built for Real-World Deployment
Built for Developers
-
Integrated sensing and embedded perception
-
Application-ready object detection and tracking
-
Configurable detection zones, events, and triggers
-
Browser-based configuration and runtime monitoring
-
REST API, MQTT, RTSP, digital I/O and PTZ integration
-
Standard Ethernet networking and Power over Ethernet
Built for Infrastructure
-
True solid-state architecture with no moving parts
-
Low 10W power consumption
-
IP-67 rated rugged aluminum housing
-
Reliable operation in harsh environments
-
3-year standard and 5-year extended warranty
Built for Scale
-
Solid-State reliability means fewer service calls.
-
Designed for continuous 24/7 operation
-
Low-bandwidth object and event output
-
Reduced system complexity with integrated perception
-
Standard interfaces simplify large-scale integration
-
Remote management and monitoring
-
Solid-state reliability reduces service calls
System Specifications
Long Range
Measurement data
Field of view (H x V)
Angular Resolution
Resolution@ 10m/32ft, 25m/80ft
Minimum range
Data Update Rate
Detection Zones
Min/Max Vehicle Speed
Alarm Latency
User Interface
Output
ONVIF
Long Range
LiDAR, Optical sensor, NIR-light, 905/940nm
Target position, direction, velocity, size, type
22.5° x 6.5°
0.1°x0.1°
1.7cm / 0.7”
4.3cm / 1.7”
0.4m
10Hz to 20Hz
Fully customizable multiple zones
<5mph up to Highway speeds
100ms (min), <500ms (typical)
Web Interface, REST API
Alarms: MQTT over Ethernet, Video: RTSP, Camera: PTZ slew-to-cue over HTTP(S)
Digital Out: Native ADAM compatible
*Implements ONVIF-compatible interfaces. ONVIF conformance certification pending.
Mid Range
45° x 13°
0.2°x0.2°
3.5cm / 1.4”
8.7cm / 3.4”
0.4m
Short Range
80° x 22°
0.4°x0.4°
7cm / 2.75”
17.5cm / 6.9”
0.4m
Power & Mechanical Specifications
Supply Voltage
Power
Dimensions
Weight
Ingress protection
Networking
PoE
Connector
Mount Compatibility
Operating Temperature
9-20 VDC, 12VDC Typical
10W Typical
109 x 68 x 100 mm
750g
IP67
100/1000Base-T Cat5/6/7
PoE, PoE+, PoE++ (802.3af/at/bt)
RJ-45 (PoE, data) M-4 (VDC)
VESA 50, VESA 75, 2xM6
-30°C..+65°C / -22°F..150°F
Approvals
EMC
Product safety
Laser safety
Environment
Cybersecurity
FCC 47CFR Part 15, Subpart B, Class A and Class B, EN 55032,
EN 55035 // IEC 61000-4-(2,3,4,5,6), KS C9832:2023 *, KS C 9835:2019 *, CISPR 35
EN/IEC 62368-1 , AS/NZS 62368.1
FDA US 21CFR1040 Notice 56 Class 1, IEC/EN 60825-1:2014 Class 1 eye safe
IEC/EN 60529, 62321 IP67, NEMA TS2
In progress (ETA 2027): ETSI EN 303 645, NIST IR 8259 A/B
